Laser 정밀가공

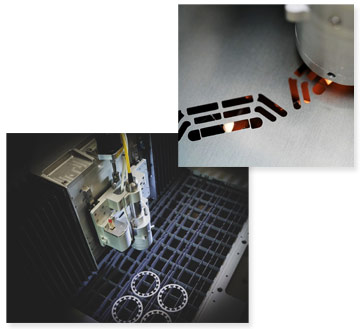

TANNLIN LASER CUTTING

Systems tailored for thin metals: 0.025 - 2.000mm
Patented TMap material fixturing Flexible production solution
+/- 5µm dimension tolerances and burr of <3µm achievable Fully automated processes
Flexible manufacturing to suit R&D through to volume manufacture

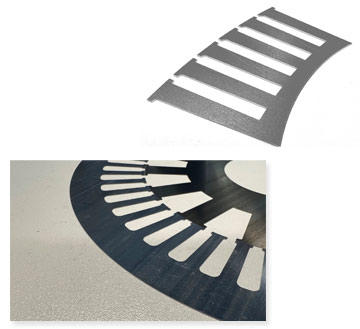

LASER CUT LAMINATIONS

Thicknesses from 0.025 - 2.000mm
General electrical steels and specialty alloys Pre-bonded materials Pre-laminated materials Feature tolerances as tight as 5µm Burr <3µm possible
Nested rotor and stator cutting possible with air gap as tight as 50µm Quick turn around

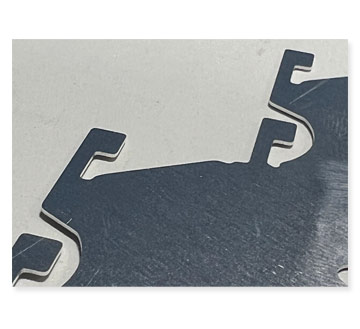

BATTERY INTERCONNECTS

Aluminium alloys 0.100-1.500mm
Copper alloys 0.100-1.500mm
Clad materials: Al-Cu, Fe-Cu, Fe-Ni, etc Feature tolerances as tight as 10µm Burr <10µm possible
Automated handling to prevent damage Flexible from R&D to volume

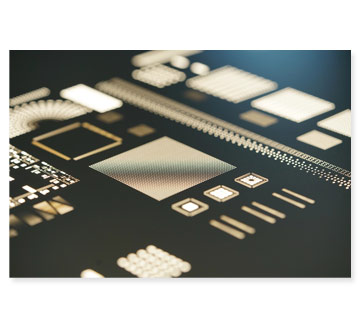

LASER CUT STENCILS Mask

Smt Stencils Mask
Multi-level welded stencils Dissimilar metal welded stencils Hydrophobic coatings
Mesh Frame:1200 x1800mm
Thickness: 0.025-0.600mm

LASER CUTTING INSPECTION

Continuous on-board cutting inspection
Live process monitoring

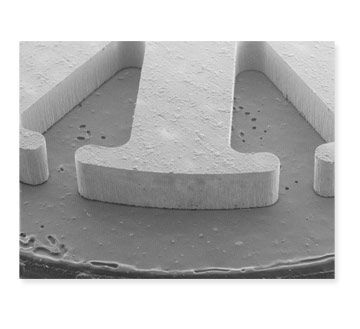

High accuracy optical CMM inspection SEM for quality inspection
